DJI Matrice 4D Series
High-Performance Drones
The all-new water and dust-resistant DJI Matrice 4D and 4TD are specifically designed for DJI Dock 3, offering extended flight time, and can pair with DJI RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium tele camera, a tele camera and a Laser Range Finder.
Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections. Matrice 4TD is equipped with an infrared thermal camera and a new NIR auxiliary light, making it suitable for a wide range of applications such as infrastructure inspections, emergency response, and public safety.

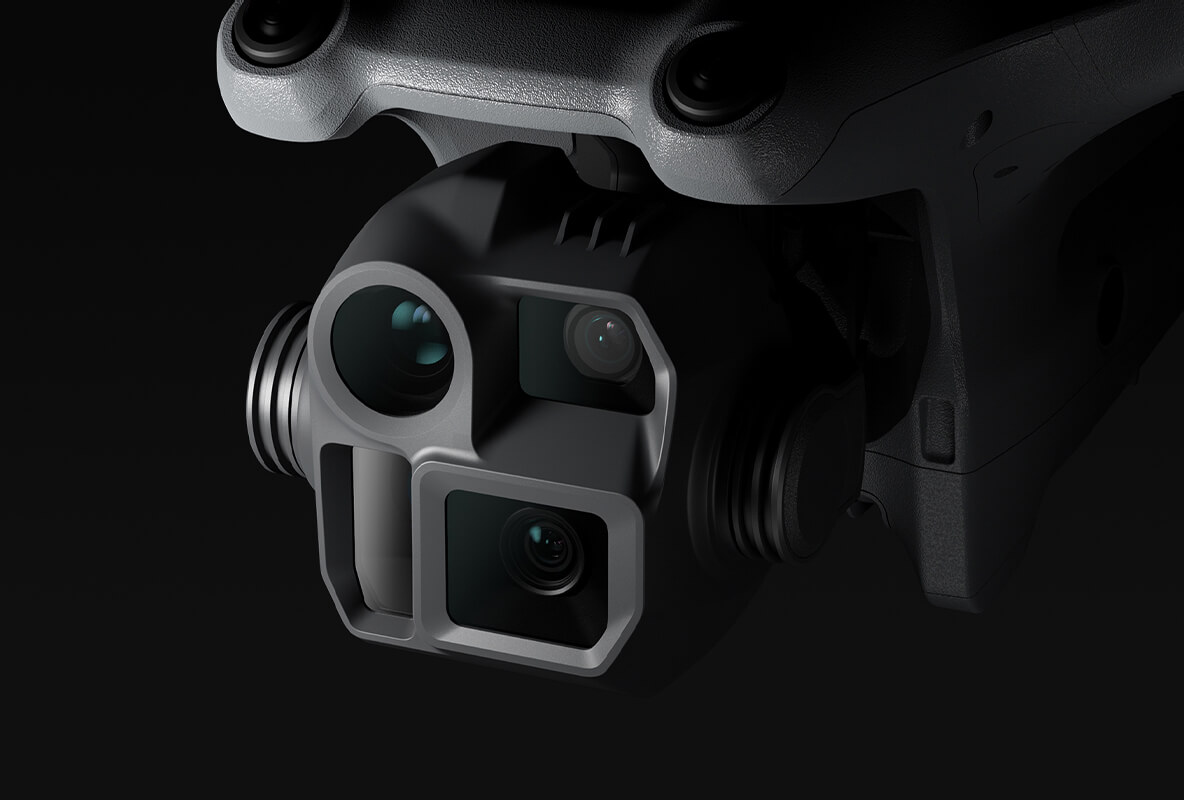

DJI Matrice 4D
Wide-Angle Camera
4/3 CMOS, 20MP Effective Pixels, f/2.8-f/11, 24mm Format Equivalent, Mechanical Shutter
Medium Tele Camera
1/1.3-inch CMOS, 48MP Effective Pixels, f/2.8, 70mm Format Equivalent
Tele Camera
1/1.5-inch CMOS, 48MP Effective Pixels, f/2.8, 168mm Format Equivalent
Laser Range Finder
- Measurement Range: 1800 m (1 Hz)
- Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)
- Blind Zone: 1 m
- Range Accuracy (m): ± (0.2 + 0.0015 × D) [7]

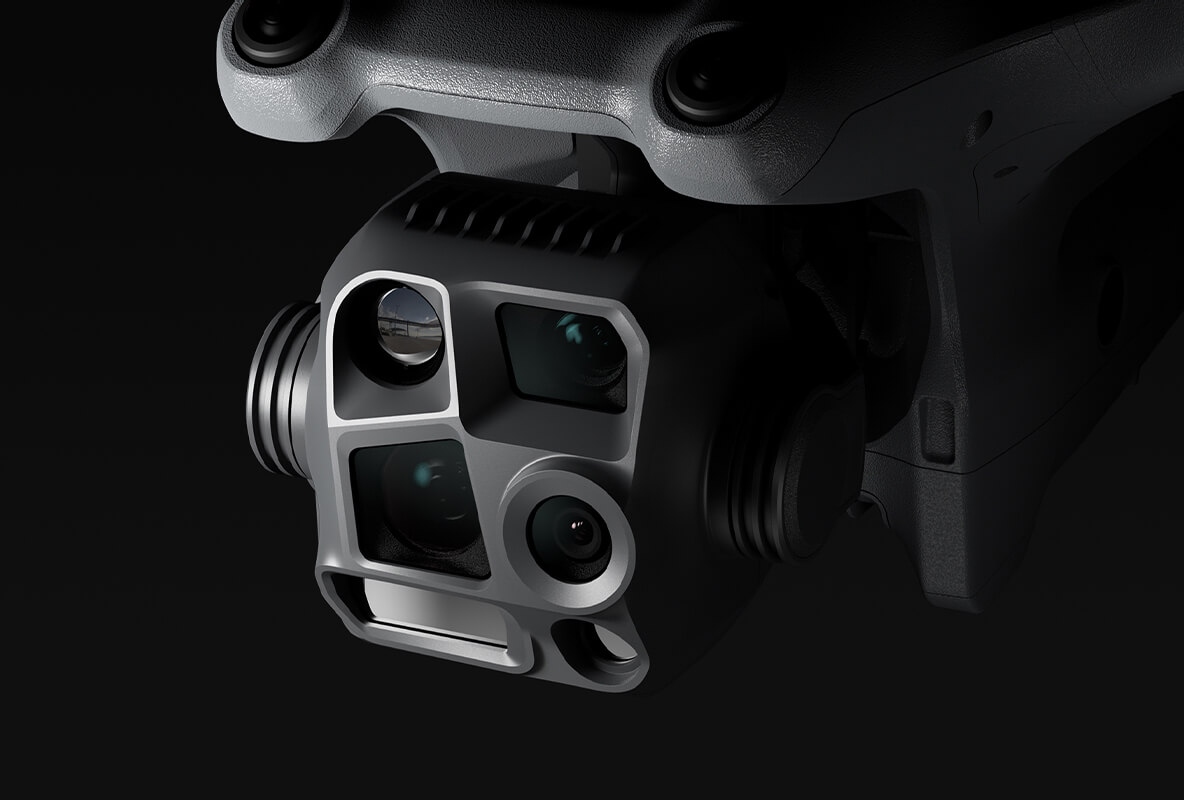

DJI Matrice 4TD
Wide-Angle Camera
1/1.3-inch CMOS, 48MP Effective Pixels, f/1.7, 24mm Format Equivalent
Medium Tele Camera
1/1.3-inch CMOS, 48MP Effective Pixels, f/2.8, 70mm Format Equivalent
Tele Camera
1/1.5-inch CMOS, 48MP Effective Pixels, f/2.8, 168mm Format Equivalent
Laser Range Finder
- Measurement Range: 1800 m (1 Hz);
- Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)
- Blind Zone: 1 m
- Range Accuracy (m): ± (0.2 + 0.0015 × D) [7]
NIR Auxiliary Light [9]
6° FOV, 100m [10] Illumination Distance
Infrared Thermal Camera [8]
640×512 Resolution, f/1.0, 53mm Format Equivalent, Uncooled VOx Microbolometer, Supports UHR Infrared Image mode
Longer Flight Time, Robust Protection
When fully charged, Matrice 4D/4TD delivers an impressive flight time of 47 minutes at a speed of 15 m/s, achieving a remarkable 37% increase in operation time. [11] At a radius of 10 km, these drones provide 18 minutes of operation. [12] Both models are designed to endure harsh conditions with an impressive IP55 dust and water resistance rating.Obstacle Sensing for Safe Operation
The Obstacle Sensing Module [4] for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions. [5] Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.[15]
Unmatched Clarity and Precision for Any Task, Anytime
Seamless Airborne Relay for Mountainous Terrains
Matrice 4D Series can operate with the DJI RC Plus 2 Enterprise remote controller for standalone use while featuring an innovative onboard relay function. With this setup, one drone can fly high as a relay, allowing another drone to operate at a greater distance. The relay drone automatically faces the operating drone, [5] ensuring smooth video transmission without a 4G signal or in obstructed conditions. [19] This capability significantly extends the transmission range, making it ideal for SAR tasks and inspections in mountainous areas.

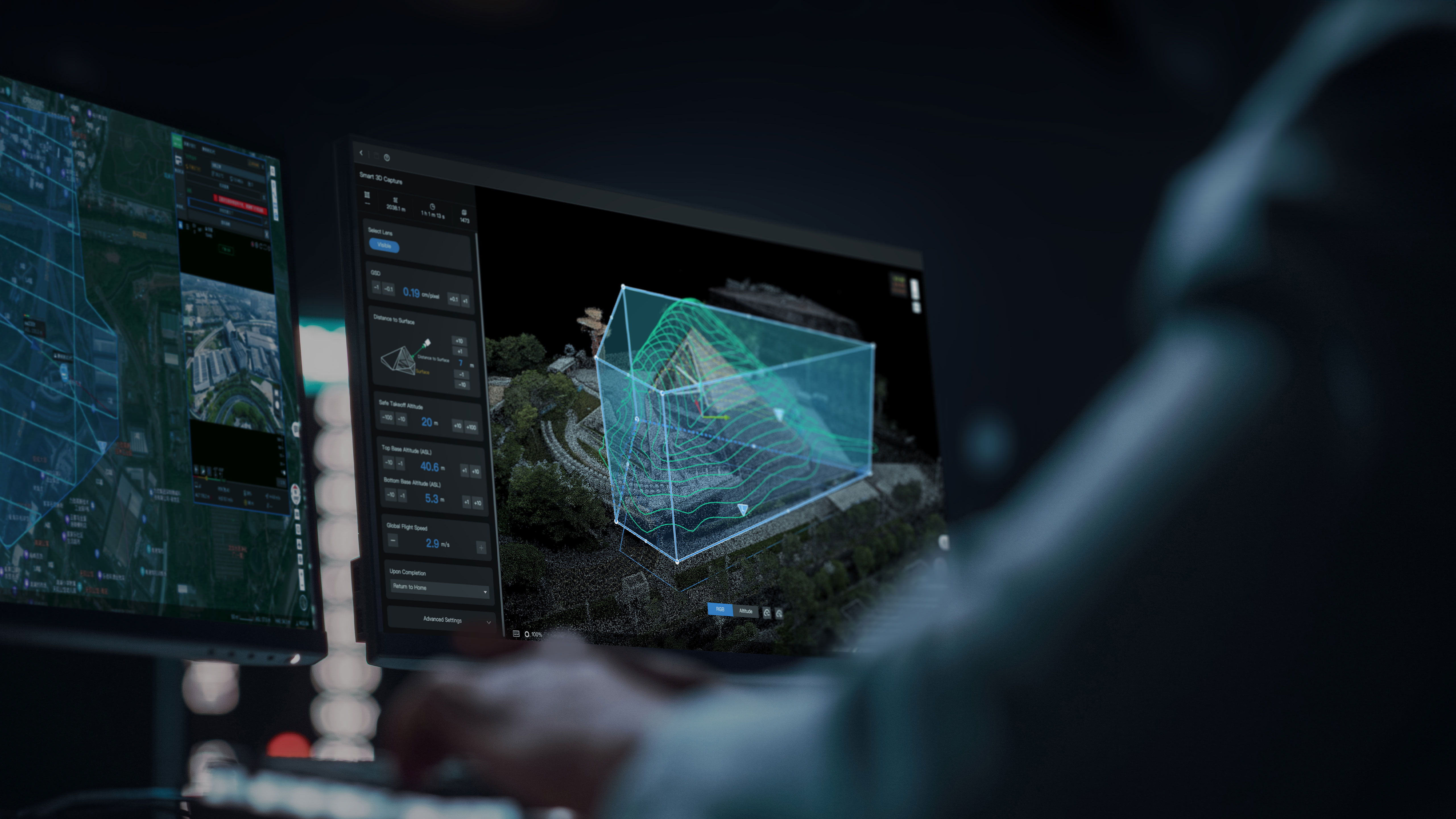

DJI FlightHub 2 Intelligent Features
When paired with DJI FlightHub 2, Dock 3 greatly enhances the intelligence and efficiency of remote operations.
Intelligent Flight and Control
Efficient Operation
Security Compliance
FlightHub 2 Custom Permission Management
FlightHub 2 has upgraded its permission management, allowing users to configure management permissions according to actual needs.
FightHub 2 Achieves ISO 27001 Certification
FlightHub 2 uploads, stores and manages data on Amazon Web Services (AWS) cloud servers, which are also ISO/IEC 27001 certified, ensuring secure and compliant data processing.
4G Dongle Private Deployment
With DJI Cellular Dongle 2 [21], the aircraft can connect to 4G networks. In complex operational environments, the 4G network works in tandem with O4+ video transmission system to ensure a stable transmission and enhance flight safety. 4G enhanced video transmission service can be privately deployed and used in conjunction with the FlightHub 2 on-premises version to further enhance the stability and security of data transmission.
Purchase DJI Matrice 4D/4TD Series and
Get 1 Year of DJI Care Enterprise Plus or 1 Year
of Official Extended Warranty Service for Free[29]
DJI Care Enterprise Plus
Comprehensive Protection | Professional Quality Assurance | Exclusive Service | Service Starts with Activation
Free Repairs
Unlimited number of free repairs within the coverage limit.
Battery Replacement
2 batteries per year, long-lasting runtime.
Coverage for Your Whole Fleet
Shared limit for maximum protection.
Free Shipping
Free Mail-in Repairs, Hassle-Free Service.
Expert Service
Rapid response from DJI product experts.
Extended Warranty Service
In addition to the official warranty, an extra 1-year warranty extension is provided. Major parts are covered by the official warranty, with support provided by our professional engineers.
Official Service
Supported by professional engineers.
Quality Repairs
Original parts, guaranteed quality.
* All data on this page was collected using a production model DJI Dock 3 and DJI Matrice 4D/4TD in a controlled environment. Actual results may vary depending on the environment, usage, and firmware version.
** All videos and photos on this page were taken in strict compliance with local laws and regulations. Demos are for reference only. Please observe local laws and regulations and ensure that the aircraft has obtained relevant certifications before flying.
*** DJI Matrice 4D/4TD must be activated via the DJI Pilot 2 app or the DJI Enterprise app before use.
**** To ensure that the equipment operates steadily and continuously, please perform regular maintenance.
- Measured when using a new battery with at least 95% battery at takeoff and at least 15% battery at landing. The data is for reference only. Always pay attention to reminders in FlightHub 2 or the DJI Pilot 2 app during flight.
- DJI Dock 3 is IP56 rated, and the DJI Matrice 4D/4TD is IP55 rated. Both were tested under controlled laboratory conditions, with the dock's distribution cabinet door closed and screws tightened. The IP rating is not permanently effective and may decrease due to product wear and tear.
- Requires using with Android phones for deployment and commissioning.
- Sold separately.
- Need to upgrade to the latest firmware.
- Vehicle mounting must comply with local regulations. Pay attention to road safety and height restrictions while driving.
- D represents the measurement distance.
- Only available with Matrice 4TD. DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage.
- Only available with Matrice 4TD. The NIR auxiliary light is suitable for the lighting needs of the tele camera.
- Measured with the drone hovering 100 meters above the ground and the tele camera effectively capturing images.
- Compared with DJI Dock 2's Matrice 3D/3TD.
- Measured at an ambient temperature of approx. 25° C (77° F), with a safe battery level of 15%, in a windless environment, and a round-trip speed of approx. 15 m/s. This value is for reference only, and the actual operation data may vary.
- Measured in a controlled test environment. Specific test conditions are as follows: flying forward at a constant speed of 12 m/s in a windless laboratory environment at 20 meters above sea level, in photo mode (without photo-taking operation during flight), with Obstacle Avoidance Action set to Off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
- Measured with the DJI Matrice 4D series drones hovering in a windless environment at 20 meters above sea level and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
- Official repair will be provided free of charge if a collision occurs due to obstacle avoidance failure, resulting in damage to the drone or the Obstacle Sensing Module, provided that the following conditions are met: the Obstacle Sensing Module is installed, the drone is flying automatically along a preset route, all equipment is operating normally, GNSS signal is strong, weather conditions are favorable, and both millimeter-wave radar and LiDAR are functioning properly. Please note that free repair is not provided in the following scenarios:(1) Presence of fast-moving objects around the flight route (e.g., operating wind turbines, moving tower cranes, birds in flight, etc.);(2) Special weather conditions such as rain, snow, fog, or dust;(3) The obstacle is located within the blind spot of the Obstacle Sensing Module. For detailed information on the range of the blind spot, refer to the User Manual of the Obstacle Sensing Module;(4) When there are small branches or wires with a diameter less than 12 mm located around the flight path, or when the drone is flying vertically nearby slanting wires;(5) Due to national policy restrictions, radar cannot be activated or can only operate with limited functions in certain countries and regions. For details, please consult your local dealer;(6) The Obstacle Sensing Module is out of warranty.
- Measured under standard lighting conditions from a horizontal position 10 meters away from the subject, with a direct line of sight.
- Captured with the tele camera directly facing the object.
- The current functionality is insufficient to meet the needs of urban area mapping. Future updates will continue to optimize flight routes and mapping solutions for urban areas.
- There should be no obstructions between the remote controller and the relay aircraft, and between the relay aircraft and the operational aircraft. Strong electromagnetic interference may affect the video transmission distance.
- In an outdoor, open environment, without interference, and with FCC compliance, the drone can typically complete the transmission of footage to the dock when the distance between the drone and the dock is within 1 kilometer. The speed of transmission from the dock to the cloud depends on the user's network conditions.
- Sold separately. This service is not available in some countries and regions. Please consult your local dealer for details.
- Please consult your dealer first to ensure that the payload is compatible with DJI FlightHub 2.
- Certain accessories are sold separately. Installing certain accessories may affect the obstacle avoidance safety performance of the aircraft. Please follow the instructions for use.
- Due to national policy restrictions, radar cannot be activated or can only operate with limited functions in certain countries and regions. For more details, please consult your local dealer.
- This is the result at a distance of one hundred meters from the subject, for reference only.
- When installing onto the aircraft, tighten the screws and ensure proper sealing of the interface. When using with DJI Dock, please use the included hex key to tighten the screws again.
- This data was measured in an experimental environment with an ambient temperature of 25° C (77° F) and is for reference only. Actual conditions may vary slightly due to differences in software versions, audio sources, specific environments, and other factors. The final effect is subject to actual use.
- The current text-to-speech function only supports English and Mandarin Chinese.
- DJI Care Enterprise service may vary by country/region. For details, please consult your local dealer; Unlimited Number of Free Repairs: Get free repairs within the coverage scope and amount; Shared Coverage: DJI Enterprise products that activate and bind DJI Care Enterprise Plus within the same period (30 calendar days) can share coverage limits; Free Shipping: Available in regions covered by DJI Care Enterprise. Users are responsible for additional costs including logistics and customs duties incurred beyond the scope of coverage; Official Extended Warranty Coverage: Includes the aircraft body, gimbal camera, remote controller, and charging hub.
- The functionalities of building-side deployment and communication tower deployment rely on the service area of the satellite positioning system, currently only supporting most regions in the Asia Pacific, as detailed in the Installation and Setup Manual. The specific applicability should be determined based on the results displayed on the DJI Pilot 2 app during dock site evaluation. During communication tower deployment, the dynamic power variation of communication base stations may cause signal interference, potentially affecting drone takeoff in rare cases. If such issues occur, please try restarting the aircraft and reissuing the flight task.
- Gateway Mode is compatible with DJI Dock 3.
- DJI O4 Ground Station offers a greater single-station coverage radius with Dock 3 compared to D-RTK 3 in Relay Station mode. Measured in an outdoor, open environment, without interference. The 30km transmission range is only achievable under IC compliance when using Matrice 4D (with DJI Dock 3) in Gateway Mode, or Matrice 4D/4TD (with DJI RC Plus 2 Enterprise) in Relay Mode. The above data shows the farthest communication range for one-way, non-return flights. Always pay attention to reminders in the app during your flight.
- Relay Mode is compatible with DJI Dock 3, Matrice 400, Matrice 4E, Matrice 4T, Matrice 4D/4TD (DJI RC Plus 2 Enterprise), and FlyCart 100. This feature is unavailable in countries or regions without 5GHz frequency support, such as Japan and Kazakhstan. Check local laws and regulations for more information.
- Sub2G band support and multi-band auto-switching are only available when using DJI O4 Ground Station with Matrice 400. These features are not available in certain countries or regions. Check local laws and regulations for more information.
- In Gateway Mode, DJI O4 Ground Station connects via Ethernet or the DJI Cellular Dongle 2 to the DJI FlightHub 2 public cloud, FlightHub 2 On-Premises, FlightHub 2 AIO, and third-party software systems developed via Cloud API or FlightHub Sync.
