Trimble Mini Prism Kit
Maintain total system integrity with prisms built to Trimble standards.
When you want a prism for precise measurements and alignment in surveying, the best choice is one designed for your Trimble solution.
The new Trimble Mini Prism Kit is designed for total versatility and field durability—optimized for use with Trimble S Series, RTS Series, SPS Series, SX Series, and Ri total stations. Compact, rugged, and highly accurate, it’s the ideal solution for precision measurement in any environment.
Kit Components

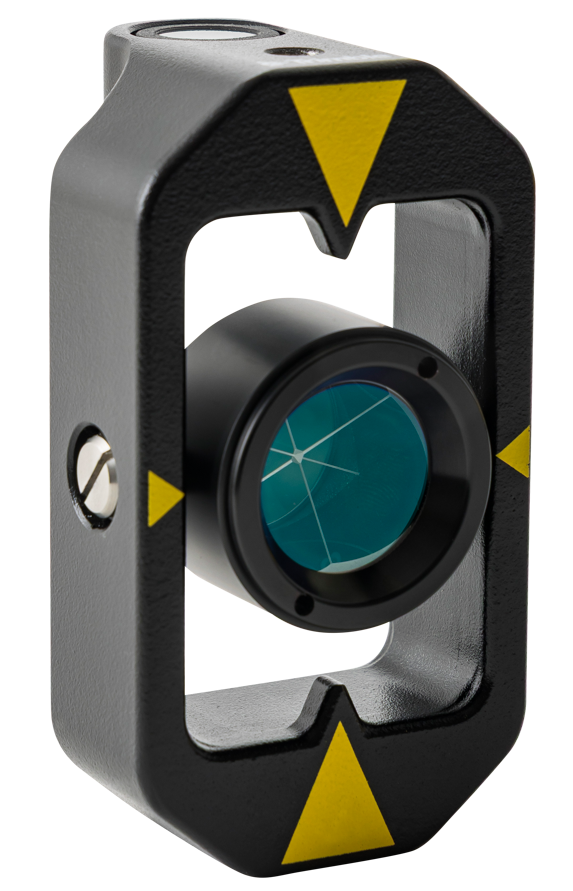

Mini Prism
Features
- Rigid aluminum frame with ¼” UNC mounting threads at the top and bottom, sighting arrows on the front and back, and an integrated, adjustable 25’ leveling bubble.
- The center of the prism is 50 mm from both the top and bottom of the frame, mounted in the nodal position with a -17 mm prism constant, and can be flipped for a 0 mm offset to the wall or surface.
- Rear surface features a protected silver coating, and the front has an anti-reflective coating, optimized for use with Trimble instruments.

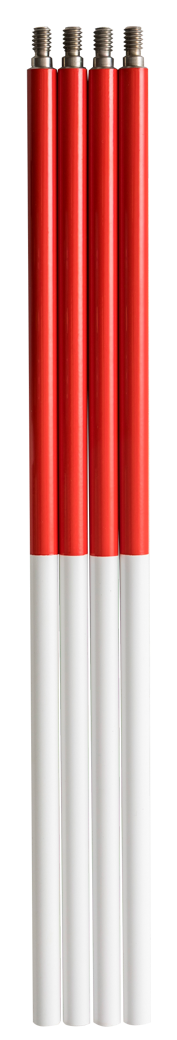

Sectional Poles
Features
- 4x 300 mm rigid stainless steel sectional poles with removable 50 mm point for measurement heights of 400, 700, 1000, 1300 mm.

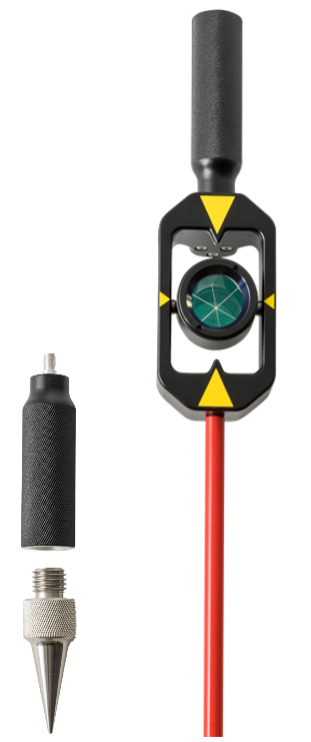

Mini Pole/Pole Adapter
Features
- When used together, it creates a mini pole with a height of 200 mm at the center of the prism.
- The pole adapter attaches to the Mini Prism housing and features a 5/8 in UNC thread for mounting onto a Trimble optical rod, prism base (or other standard mount), and includes the Trimble standard target height of 135 mm.
- The pole adapter can also be attached to the top of the prism and used as a handle when working with sectional poles.

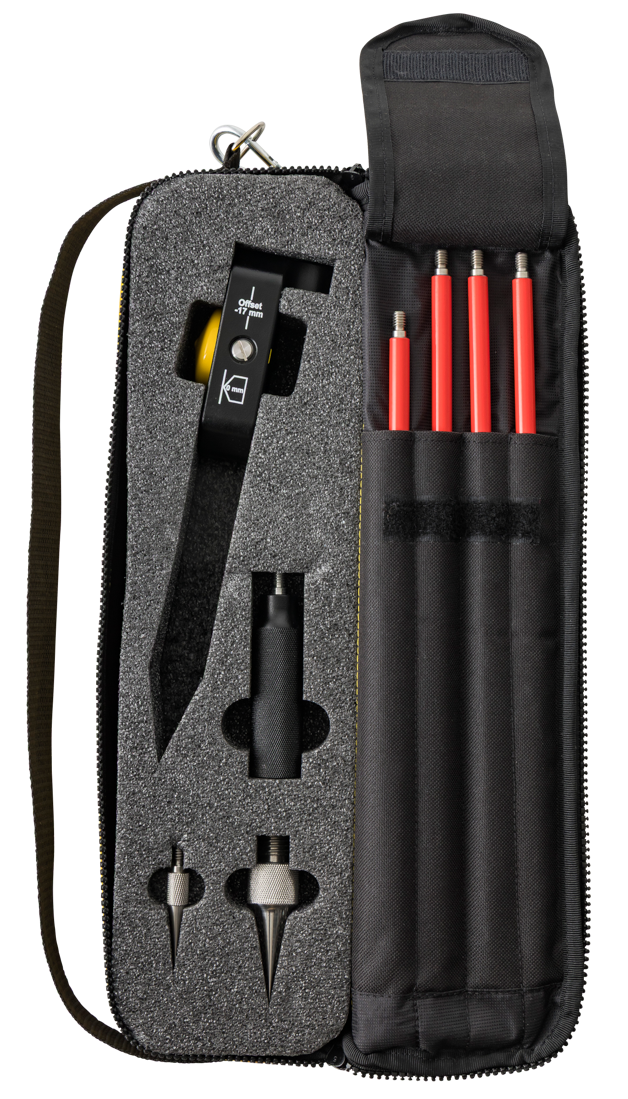

Carry Case
Features
- Carry case with foam insert to protect the prism and accessories during transport.
- The prism can be stored with the 50 mm point or the mini pole/pole adapter attached.
Field Software Support
Trimble Access

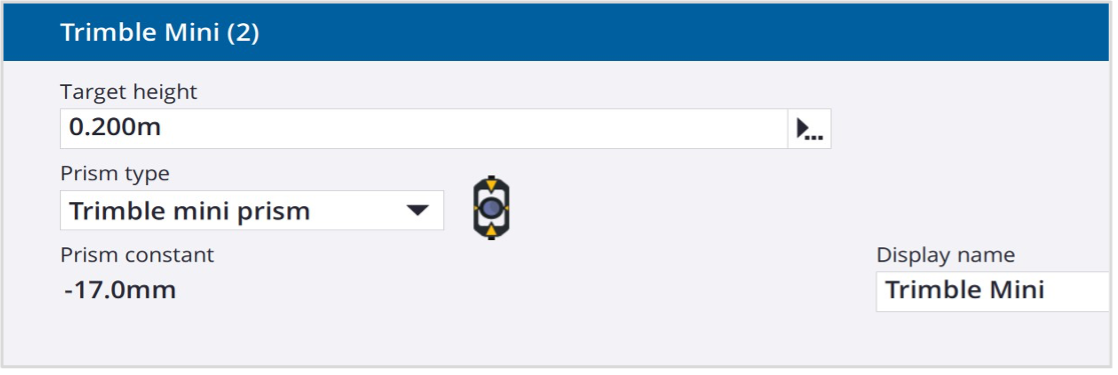

Starting from version 2015.10, Trimble Access™ software supports the new Trimble Mini Prism. In the target form, select “Trimble Mini Prism” from the drop-down menu, and you'll see the corresponding target icon and a prism constant of -17.0mm.
Trimble FieldLink

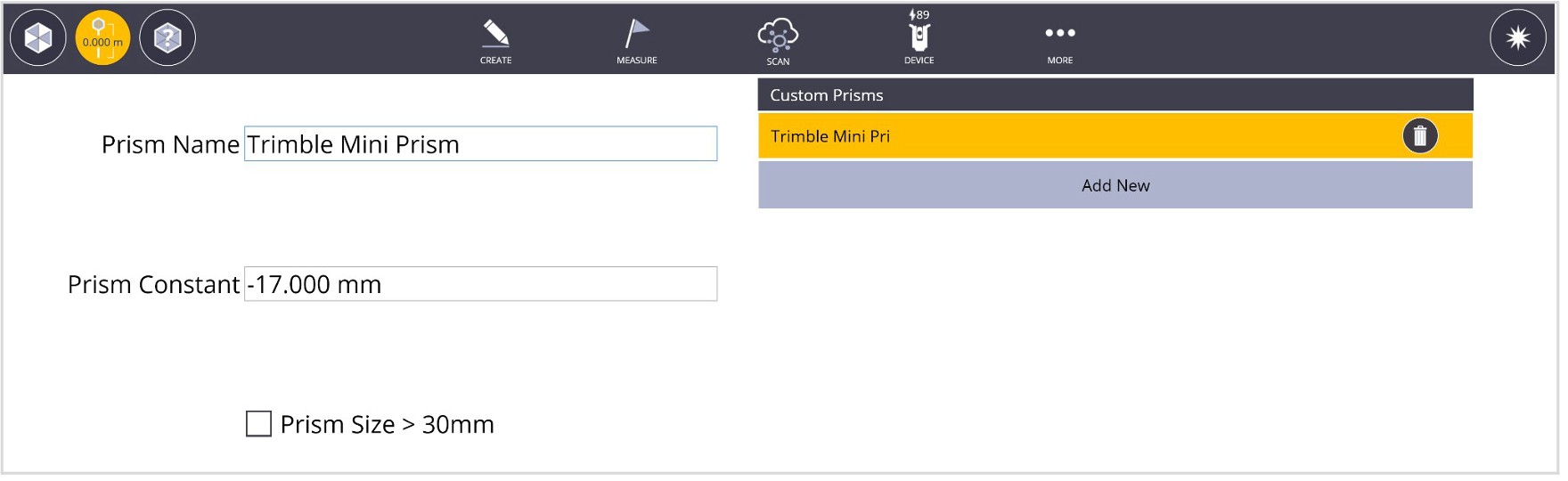

In Trimble FieldLink software, create a custom prism name, such as “Trimble Mini Prism,” and enter -17.0 mm as the prism constant.
