Cable Avoidance Tools
Avoid cable strikes and dig more safely with professional-grade tools that support the best locating practices
Maintain safety and accuracy on every job with Radiodetection Cable Avoidance Tools (C.A.T). Engineered to Radiodetection’s high standards, these instruments quickly and reliably detect buried utilities, reducing the risk of damage and downtime.

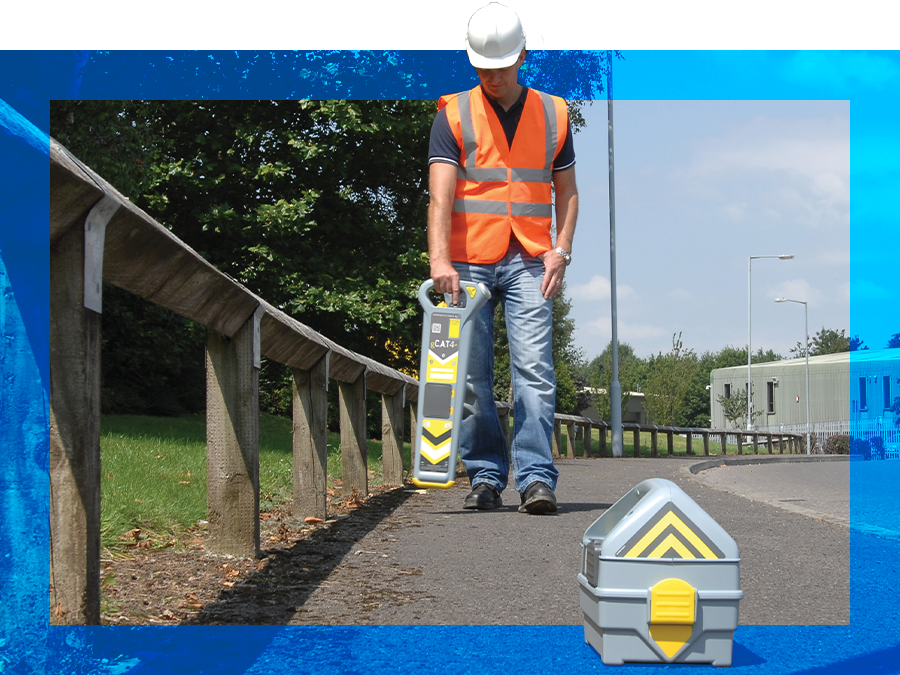

Trusted in construction, utilities, and surveying, C.A.T systems offer precision, durability, and ease of use. Pair them with a signal generator (Genny) signal transmitters for enhanced detection in demanding environments.
C.A.T. and Genny Systems
Explore the latest range of Cable Avoidance Tool (C.A.T) and Signal Generators (Genny), pioneered by Radiodetection.
C.A.T4

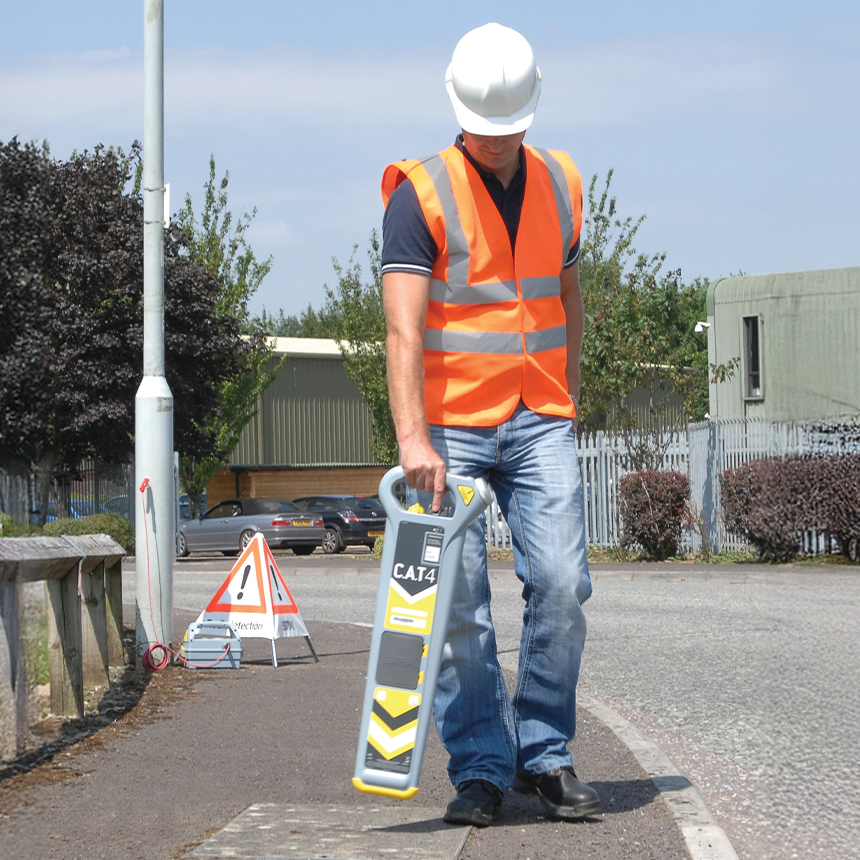

The C.A.T4 is the standard model of the range. Using it with the Genny4 transmitter, experienced operators will be able to find more buried utilities, faster.
C.A.T4+
The C.A.T4+ offers the same locating performance as the C.A.T4 but with addition of Depth measurement, allowing better identification of the route of buried utilities.

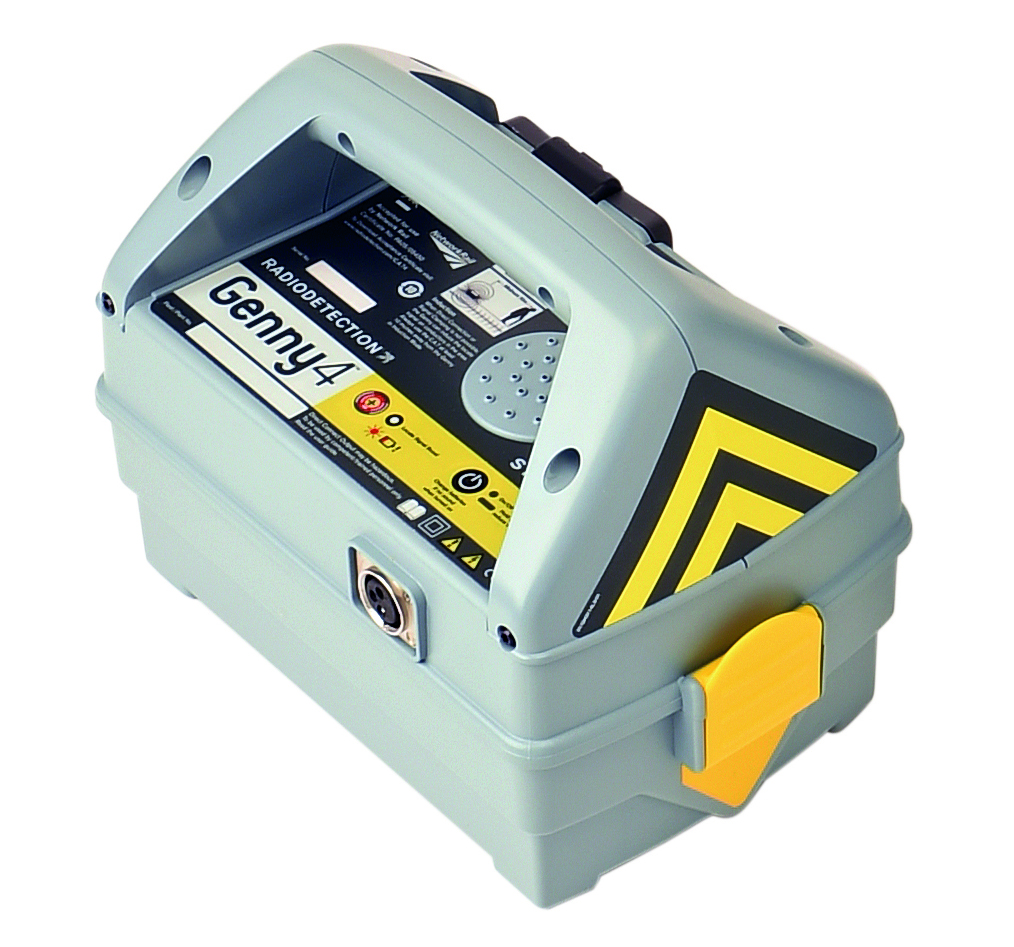

Genny4
Genny4’s patented simultaneous dual-frequency signal output facilitates the location of small-diameter cables such as telecoms and street lighting, including spurs. All C.A.T4 locator models feature patented technology that simultaneously detects both signals. The power boost function in Genny4 enables the locate signal to travel further and deeper, and couple onto utilities more easily.
Applications
Radiodetection’s C.A.T4 and Genny4 offer a comprehensive range of Cable Avoidance Tools, designed to be simple to operate while providing features that improve survey speed and accuracy.
- Simultaneous Dual Frequency: Helps locate small-diameter cables.
- Dynamic Over Voltage Protection: Enables operation in electrically noisy areas.
- Avoidance Mode: Speeds surveys by detecting Power, Radio, and Genny signals simultaneously.
As safety-critical tools, the C.A.T4 range also includes features that support safe working and help reduce utility strike rates:
- StrikeAlert: Warns of shallow cables.
- SWING Warning: Alerts users to incorrect tracing techniques.
- Built-in Data Logging & GPS/GNSS: Enables usage and location analysis and reporting.
- Bluetooth Low Energy: Connects to Android and iOS devices.
- Service Due & CalSafe: Prevents use of instruments beyond calibration due date.
u-LOCATE Pipe and Cable Locator

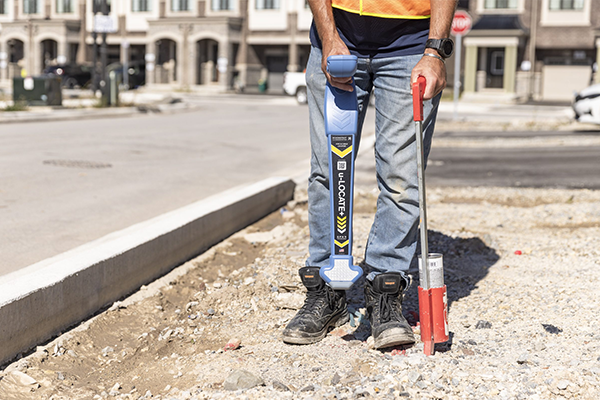

Confirm before you dig with the Schonstedt u-Locate Pipe and Cable Locator. Designed for excavators, construction contractors, landscapers, and fence installers, this reliable tool helps prevent accidental damage to buried utilities. It accurately detects high-frequency active signals, enabling precise location of water, gas, and telecom lines while also identifying live power cables with confidence.
u-LOCATE Locator Specifications
u-LOCATE |
u-LOCATE+ | |
| Operating frequencies | 82kHz | 33kHz, 82kHz |
| Sonde | - | 512Hz |
| Passive mode | 50/60Hz | 50/60Hz |
| Max Depth Active mode | 19’ (5.8m) | 19’ (5.8m) |
| Max Depth Sonde mode | - | 5’ to 15’ (1.5m to 4.5m) |
| Positional Accuracy | 5% | 5% |
| Battery requirements | 6 x AA Receiver | |
| Usage hours | 20 hours | |
| Audio output | 10-1500Hz (determined by signal strength) 0-70 dB SPL (volume controlled) | |
| Ingress Protection rating | Weatherproof to NEMA3S and IP65 | |
| Construction High Impact | ABS Plastic | |
| Operating temperature | -10 to + 50°C (14 to 122°F) | |
| Weight including Batteries | 2.4 lbs (1.1 Kg) | |
| Warranty | 1 year (with an option to extend to 3 years at the point of purchase) | |
| Overall Dimensions: | 25.6” x 3.9” x 8.7” (65.1cm x 9.9cm x 22.1cm) | |
| |

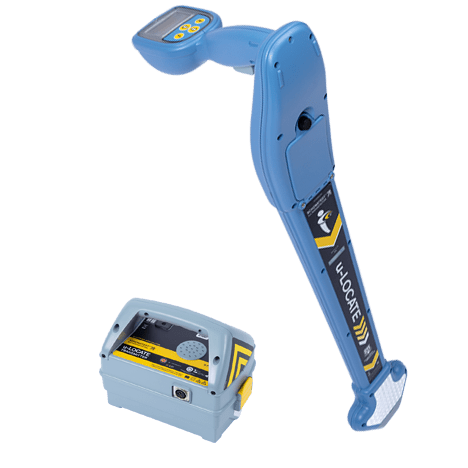

| u-LOCATE | |
| Operating frequencies | 82kHz |
| Sonde | - |
| Passive mode | 50/60Hz |
| Max Depth Active mode | 19' (5.8 m) |
| Max Depth Sonde mode | - |
| Positional Accuracy | 5% |
| Battery requirements | 6 x AA Receiver |
| Usage hours | 20 hours |
| Audio output | 10-1500Hz (determined by signal strength)
0-70 dB SPL (volume controlled) |
| Ingress Protection rating | Weatherproof to NEMA3S and IP65 |
| Construction High Impact | ABS Plastic |
| Operating temperature | -10 to + 50°C (14 to 122°F) |
| Weight including Batteries | 2.4 lbs (1.1 Kg) |
| Warranty | 1 year (with an option to extend to 3 years at the point of purchase) |
| Overall Dimensions | 25.6” x 3.9” x 8.7” (65.1cm x 9.9cm x 22.1cm) |
| |

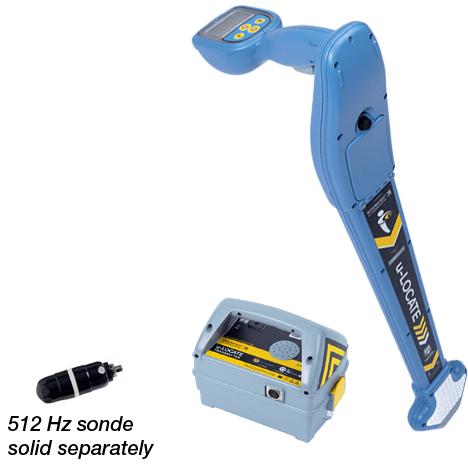

| u-LOCATE+ | |
| Operating frequencies | 82kHz |
| Sonde | - |
| Passive mode | 50/60Hz |
| Max Depth Active mode | 19' (5.8 m) |
| Max Depth Sonde mode | - |
| Positional Accuracy | 5% |
| Battery requirements | 6 x AA Receiver |
| Usage hours | 20 hours |
| Audio output | 10-1500Hz (determined by signal strength)
0-70 dB SPL (volume controlled) |
| Ingress Protection rating | Weatherproof to NEMA3S and IP65 |
| Construction High Impact | ABS Plastic |
| Operating temperature | -10 to + 50°C (14 to 122°F) |
| Weight including Batteries | 2.4 lbs (1.1 Kg) |
| Warranty | 1 year (with an option to extend to 3 years at the point of purchase) |
| Overall Dimensions | 25.6” x 3.9” x 8.7” (65.1cm x 9.9cm x 22.1cm) |
Locators
We offer cable locators and avoidance tools that are lightweight, simple to operate, yet packed with features to improve survey efficiency and precision.
Radiodetection C.A.T4+ Cable Avoidance Tool with StrikeAlert - Imperial
Model #10/CAT4+EN34
Radiodetection C.A.T4+ Cable Avoidance Tool - Imperial
Model #10/CAT4+EN14
Signal Generators (Genny)
The Genny signal transmitter complements Radiodetection’s C.A.T4 cable avoidance range, providing the active signals needed for accurate utility detection and safer excavation when passive signals are weak or absent.
Radiodetection Cable Avoidance Tool Kit - C.A.T4 / Genny4 Metric with StrikeAlert Kit and Soft Carry Bag
Model #10/CAT4-GENNY4-KIT-33
Radiodetection Cable Avoidance Tool Kit - C.A.T4 / Genny4 Imperial and Soft Carry Bag
Model #10/CAT4-GENNY4-KIT-14
Accessories
Essential accessories maximize the performance and versatility of Radiodetection’s Cable Avoidance Tools. Signal clamps apply signals safely to live cables, connection leads enhance tracing accuracy, and extension leads add reach in difficult areas. A rechargeable battery kit delivers reliable, long-lasting power for uninterrupted field use.
Radiodetection C.A.T and Genny NiMH Rechargeable Battery Kit
Model #10/CATRECHARGEKIT-US
Available Year-Round
CCA Gold Seal Certified Training
Tailored training available for you and your team
Earn your CCA Gold Seal Certification through this hands-on training designed for field professionals. Gain credentials and build the skills to locate utilities safely, accurately, and in compliance with industry standards.
